Details
Specification:
IC Type: WS2812b
LED Chip:RGB 5050 SMD
LED Quantity: 96LEDs/meter 1 LED = 1 pixels
IC Quantity: 96 ICs/meter, the ic is built-in the led, 1 IC drives 1 LED chip
Bits/color: 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
LED Wave Lengths: 630nm/530nm/475nm
Cuttable: every LED is cuttable
Cables: DC5V, DATA, GND
Length: 1 meter
Working Voltage: DC 5V
Power: 29 watt/meter
PCB Width: approx 12mm
PCB Color: Pls Choose White or Black or Doesn't Matter, Delivery ASAP
Protection Rate:Pls Choose Non-Waterproof with 3M Tape on the Back or IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Grey scale: 256 levels
This is very high end led strip, our strips are an easy way to add complex lighting effects to a project. Each LED has an integrated driver that allows you to control the color and brightness of each LED independently. The combined LED/driver IC on these strips is the extremely compact WS2812B (essentially an improved WS2811 LED driver integrated directly into a 5050 RGB LED), which enables higher LED densities.
If you request, we would supply this led strip in 4 meters per roll or 5 meters per roll, pls contact us right after you place the order. For example, you would buy 5 rolls of 1 Meter light, and send us a email to request us to send you 1 roll of 5 meters.
Package include:

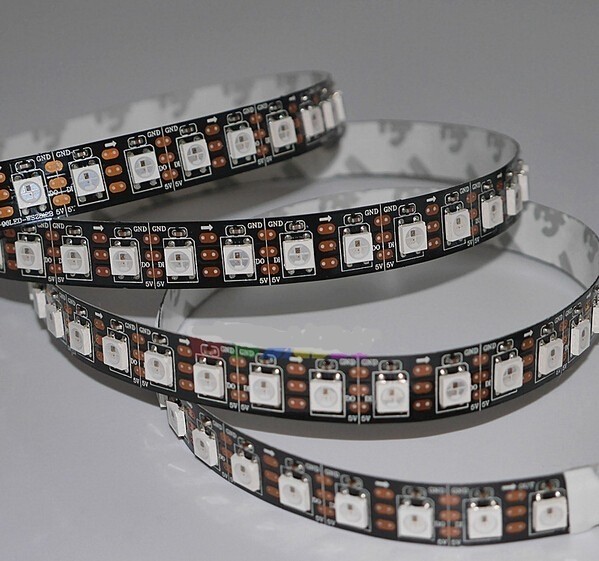

1 Roll of 1Meters 96LEDs DC 5V WS2812b Addressable LED Strip Light
CE and RoHS approved
Additional Information
Weight | 0.3900 |
---|
