Details

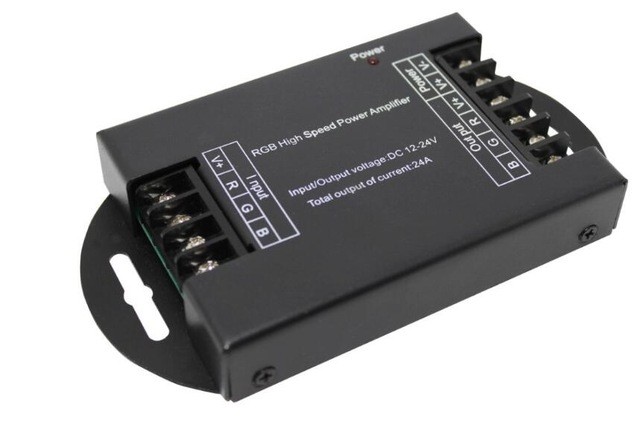

High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.
External dimension: L145mm*W76.8mm*H20.5mm
Packing size: L155Χ W85 Χ H26 mm
Connect terminal: screw connect mode, terminal caliber 7mm
Connect mode: common anode
Output current: <24A
Output power: 12V:<288W, 24V:<576W
Working temperature: -20-60 ℃
Working voltage: DC12V-24V
Signal voltage: DC12V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 253.5g
Gross weight: 283.5g
Package:
1 Piece of LED Controller
1 Piece of User's manual
High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.
External dimension: L145mm*W76.8mm*H20.5mm
Packing size: L155Χ W85 Χ H26 mm
Connect terminal: screw connect mode, terminal caliber 7mm
Connect mode: common anode
Output current: <24A
Output power: 12V:<288W, 24V:<576W
Working temperature: -20-60 ℃
Working voltage: DC12V-24V
Signal voltage: DC12V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 253.5g
Gross weight: 283.5g
Package:
1 Piece of LED Controller
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
Additional Information
| Weight | 0.2840 |
|---|
