Details
Technical Parameters
Working temperature: -20-60℃
Supply voltage: DC12-24V
Output: 1 channel
Connection mode: common anode
External dimension: L81.5ΧW64ΧH40 mm
Packing size: L90ΧW72ΧH50 mm
Net weight: 140g
Gross weight: 195g
Static power consumption:<1W
Output current: <30A
(when PWM frequency is more than 1KHZ, maximum output current will reduce accordingly)
Power supply for remote control: 12V
Transmission frequency: 433.92 Mhz
Remote control distance: about 20m
Emission current: 30mA

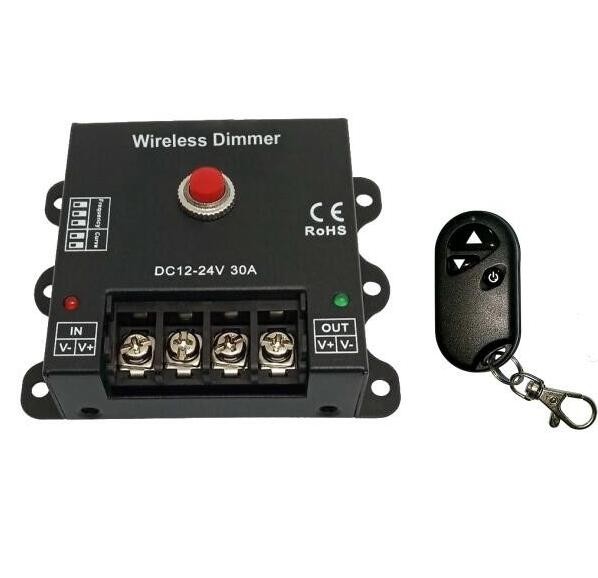

Frequency adjustable wireless dimmer can achieve ten-level dimming, can dim with button and wireless remote control. User can adjust light to the appropriate brightness according to actual needs. Output of dimmer is 1 channel, and you can adjust PWM frequency and dimming curve through the dial switch.
Package:
1 Piece of LED Controller
1 Piece of User's manual
Technical Parameters
Working temperature: -20-60℃
Supply voltage: DC12-24V
Output: 1 channel
Connection mode: common anode
External dimension: L81.5ΧW64ΧH40 mm
Packing size: L90ΧW72ΧH50 mm
Net weight: 140g
Gross weight: 195g
Static power consumption:<1W
Output current: <30A
(when PWM frequency is more than 1KHZ, maximum output current will reduce accordingly)
Power supply for remote control: 12V
Transmission frequency: 433.92 Mhz
Remote control distance: about 20m
Emission current: 30mA
Frequency adjustable wireless dimmer can achieve ten-level dimming, can dim with button and wireless remote control. User can adjust light to the appropriate brightness according to actual needs. Output of dimmer is 1 channel, and you can adjust PWM frequency and dimming curve through the dial switch.
Package:
1 Piece of LED Controller
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
