Details

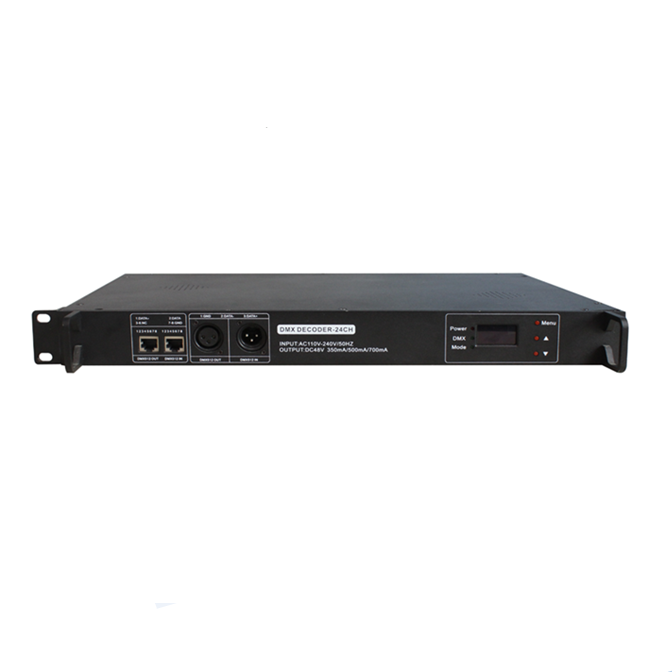

Leynew DMX103 DC 48V DMX Multiple Channel Decoder Controller
1.Product Summarization
This product is the newest development products that can support 350mA, 500mA and 700mA output current of 24-channels DMX constant current decoder. It built-in 22 light control modes,supports standard DMX512 signal input and achieves extend output multiple light effect. Further more, it support 3 grade cascade extend output, realize more channel lights controlled by one DMX controller(3 grade reach to 72 channel).This product has power down memory function. Devices restart from the power down can automatically return to the prior working mode,no need manual intervention to go on the work.The above make the usage more convenient.
2.Product Features
Products support current output 350mA, 500mA and 700mA
Support standard DMX512 signal
Has a power-down memory function
3.Technical Parameters
Working temperature:-20-60℃
Supply voltage:AC110-220V
Output voltage:DC48V
External dimension:L440*W275*H45mm
Packing size:L570*W345*H75 mm
Net weigh:3.1 kg
Gross weight:3.9kg
Decode channel:Max 24 channel
Output :24CH,each channel 350mA / 500mA/700mA
Package Included:
1 Piece of Leynew DMX103 DC 48V DMX Multiple Channel Decoder Controller
CE and RoHS approved
Additional Information
| Weight | 4.1000 |
|---|
