Leynew DMX124 Signal Distributor Output 4 Channels LED Controller

Be the first to review this product

Availability: In stock

€37.61
  • Buy 24 for €37.21 each and save 2%
  • Buy 60 for €37.01 each and save 2%
  • OR

    Quick Overview

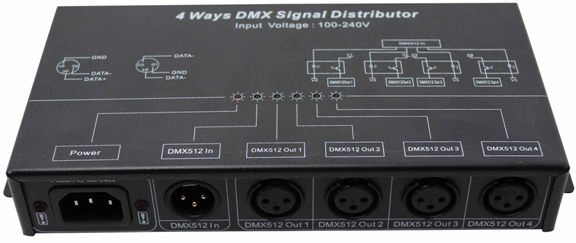

    Leynew DMX124 Signal Distributor Output 4 Channels LED Controller

    Leynew DMX124 Signal Distributor Output 4 Channels LED Controller

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    DMX124 signal distributor is one of DMX signal distributor series, is specially used for amplifying DMX512 digital lighting control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to be complete electrical isolation. Due to the independent isolation between input/output interface, it can avoid burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to improve reliability for the whole digital lighting control system.

    Technical parameters

    Working temperature: -20-60℃

    Input voltage: AC 100 ~ 240V  50~60HZ

    Rated power: 4W

    Input signal:1 channel DMX512 signal

    Output signal:4 channel DMX512 signal output, the output port can be connected to 32 equipments mostly.

    The isolation voltage between input/output interface: > 1000V

    Cascade quantity: can cascade 16pcs signal amplifier mostly.

    Net weight: 0.7kg

    Gross weight: 1.1kg

    External dimension: L241*W109.5*H37.5mm

    Packing size: L270*W170*H6

    Package Included:

    1 Piece of Leynew DMX124 Signal Distributor Output 4 Channels LED Controller

    4channels_DMX124_14channels_DMX124_24channels_DMX124_3

    CE and RoHS approved

    Additional Information

    Weight 1.3000
