Details

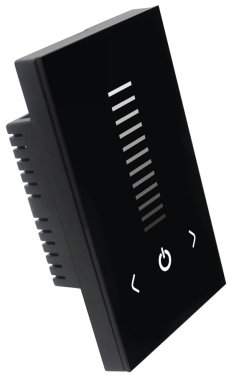

Touch panel dimmer is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC12~24V
Output voltage: DC12~24V
Output: 1 channel
Connection mode: common anode
External dimension: L74 Χ W120 Χ H41.8mm
Packing size: L150 Χ W100 Χ H57 mm
Net weight: 150g
Gross weight: 207g
Static power consumption: <1W
Output current: <8A
Output power: 12V<96W, 24V<192W
Package Included:
1 Piece of Leynew TM06U Touch Panel Dimmer America Standard LED Controller
CE and RoHS approved
Touch panel dimmer is a new high-end dimmer which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC12~24V
Output voltage: DC12~24V
Output: 1 channel
Connection mode: common anode
External dimension: L74 Χ W120 Χ H41.8mm
Packing size: L150 Χ W100 Χ H57 mm
Net weight: 150g
Gross weight: 207g
Static power consumption: <1W
Output current: <8A
Output power: 12V<96W, 24V<192W
Package Included:
1 Piece of Leynew TM06U Touch Panel Dimmer America Standard LED Controller
Additional Information
| Weight | 0.4080 |
|---|
