Leynew TM120E Europe Standard 0-10V Touch Panel Dimmer

Be the first to review this product

Availability: In stock

€17.02
  • Buy 24 for €16.72 each and save 2%
  • Buy 60 for €16.52 each and save 3%
  • OR

    Quick Overview

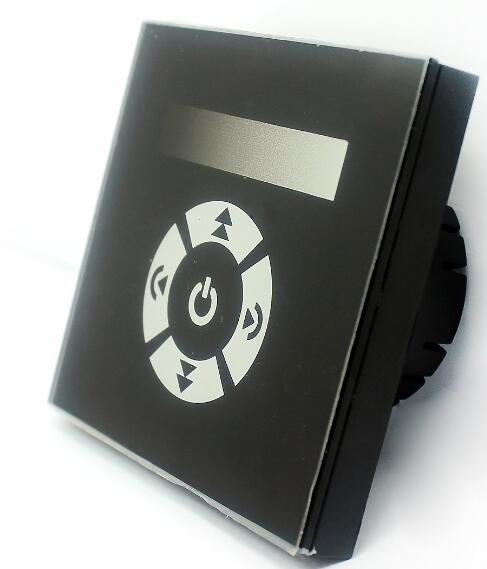

    Leynew TM120E Europe Standard 0-10V Touch Panel Dimmer

    Leynew TM120E Europe Standard 0-10V Touch Panel Dimmer

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Technical Parameters

    working temperature: -20-60 ℃

    supply voltage: AC90~240V/ 50Hz~60Hz

    output: 1 channel

    output signal: 0~10V

    external dimension: L80 Χ W80 Χ H41.8 mm

    packing size: L110 Χ W110 Χ H56 mm

    net weight: 144g

    gross weight: 194g

    static power consumption: <3W

    0~10V signal output current: <15mA

    maximum output power of relay: <200W

    Europe standard 0~10V touch panel dimmer which adopts advanced computer control chip and Europe standard appearance, has added a channel relay power supply output. As a kind of 0~10V power input, it has a more powerful dimmer rate. It inherits the advantages of low-voltage controllers, adopts glass panel design, is beautiful and fashionable in appearance, with high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It can use for controlling different kinds of LED strips whose power are 0~10V and provides more comfortable and convenient, safer, intelligent lighting control than traditional lighting control, optimized people’s lighting control experience, thus gives user a new comfortable lighting environment.

    Package:

    1 Piece of LED Controller

    1 Piece of User's manual

    Touch_Panel_Series_TM120E_1Touch_Panel_Series_TM120E_2Touch_Panel_Series_TM120E_3Touch_Panel_Series_TM120E_4Touch_Panel_Series_TM120E_5Touch_Panel_Series_TM120E_6Touch_Panel_Series_TM120E_7

    • Touch_Panel_Series_TM120E_8

      CE and RoHS approved

    Additional Information

    Weight 0.4000
