Details
Touch panel music controller adopt advanced PWM control technology, used for control all kinds lamps that can realize RGB change, this product adopt glass panel design, stylish and beautiful, one key can switch normal mode and music mode, under music mode, music is converted into a signal through the microphone MIC, through audio analysis techniques, the panel will show music spectrum change, while the load lights with the music rhythm changes.
Technical parameter
Working voltage: DC12-24V Connect way: common anode
Working temperature: -20-60℃ External dimension: L86*W86*H32.4（mm）
Output: Max4A *3CH Packing size: L110*W110*H55（mm）
Static power consumption: Max0.35W(12V)-Max0.69W(24V) Net weight: 101g
Output power: Max144W(12V)-Max288W(24V) Gross weight: 161g
Package Included:

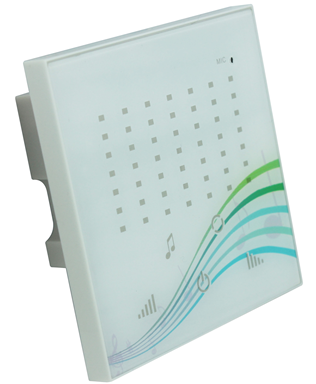

1 Piece of Leynew TM14 Touch Panel Music LED Controller
CE and RoHS approved
Touch panel music controller adopt advanced PWM control technology, used for control all kinds lamps that can realize RGB change, this product adopt glass panel design, stylish and beautiful, one key can switch normal mode and music mode, under music mode, music is converted into a signal through the microphone MIC, through audio analysis techniques, the panel will show music spectrum change, while the load lights with the music rhythm changes.
Technical parameter
Working voltage: DC12-24V Connect way: common anode
Working temperature: -20-60℃ External dimension: L86*W86*H32.4（mm）
Output: Max4A *3CH Packing size: L110*W110*H55（mm）
Static power consumption: Max0.35W(12V)-Max0.69W(24V) Net weight: 101g
Output power: Max144W(12V)-Max288W(24V) Gross weight: 161g
Package Included:
1 Piece of Leynew TM14 Touch Panel Music LED Controller
Additional Information
| Weight | 0.3610 |
|---|
