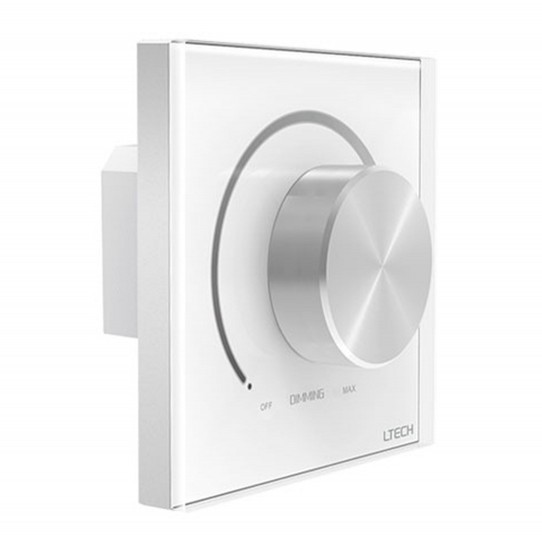

LTECH E6-DA1 Switch Wall Mount Knob Panel DALI Dimmer Controller

Be the first to review this product

Availability: In stock

€32.48
  • Buy 20 for €30.46 each and save 7%
  • Buy 100 for €28.35 each and save 13%
  • OR

    Quick Overview

    LTECH E6-DA1 Switch Wall Mount Knob Panel DALI Dimmer Controller

    LTECH E6-DA1 Switch Wall Mount Knob Panel DALI Dimmer Controller

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Product features:

    Adopt latest DALI standard protocol IEC62386

    upport switch and dimming function..

    DALI bus supply power.

    Easy to set DALIaddress.

    Support group, unicast, broadcast mode.

    Technical  specs:

    Name: DALI knob panel

    Model: E6-DA1

    Power supply: DALI power

    Output signal: DALI

    Dimming style: Spin

    static current:  6mA@16V

    Standby current: 4mA@16V

    working temperature: -20℃~55℃

    Dimension :L86*W86*H50(mm)

    Package Size :L106*W106*H60(mm)

    Weight (G.W) :235g

    Package Content:

    1 Piece of E6-DA1 LED DALI knob panel

    LTECH_DALI_Master_Controller_E6_DA1_1LTECH_DALI_Master_Controller_E6_DA1_2LTECH_DALI_Master_Controller_E6_DA1_3LTECH_DALI_Master_Controller_E6_DA1_4

    CE and RoHS approved
