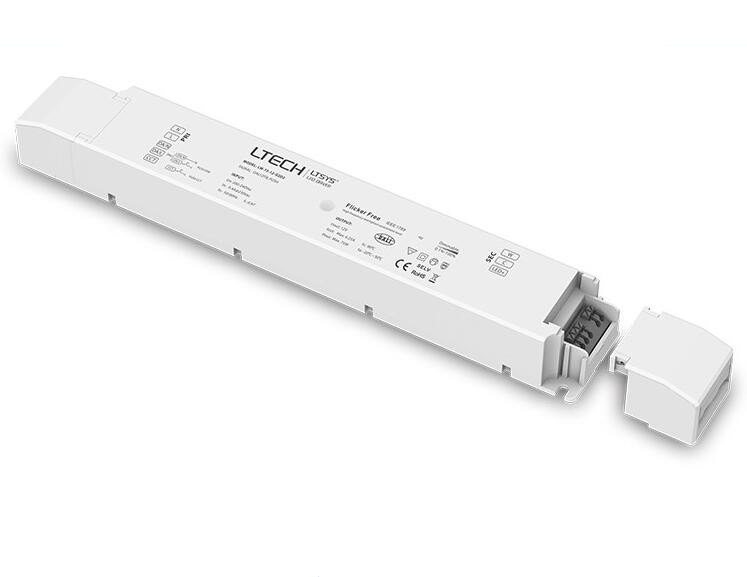

LTECH LM-75-12-G1D2 CV DALI Dimming Driver AC 200-240V Input

Availability: In stock

€29.87

Qty:

-OR- -OR-

Quick Overview

LTECH LM-75-12-G1D2 CV DALI Dimming Driver AC 200-240V Input

Double click on above image to view full picture

Technical Specs:

LM-75-12-G1D2

Dimming Interface: DALI/PUSH DIM

Dimming Range: 0~100%, LED start at 0.1% possible.

Input Voltage Range: 200-240Vac ±10%, 277Vac

Power Factor: PF>0.96/230Vac , PF>0.95/277Vac

Efficiency: >91.5%

Output Voltage Range: 12Vdc ± 0.5Vdc

Output Power Range: 1~75W

Output Current: Max. 6.25A

Working Temperature.: tc: 80℃ ta: -30 ~ 55℃

Dimension: 292×43×30mm(L×W×H)

Packing: 296×44×33mm(L×W×H)

Weight(G.W.): 300g±10g

If you need LM-75-24-G1D2 pls check this product link

Package:

1 Piece of LM-75-12-G1D2 CV DALI Dimmable Driver

1 Piece of Manual

LTECH_CV_DALI_Dimmable_Driver_LM_75_12_G1D2_1

CE and RoHS approved
