Details
Brief introduction
ArtNet-DMX converter is the Ethernet Control System based on the ArtNet protocol, used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and standard DMX512 output interface.
Artnet-DMX-1 can be configured in one of two ways: ArtNet convert into DMX512, or DMX512 convert into Artnet. Artnet-DMX-2 has two standard DMX512 date output port, output 1024 data in total.
It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on
Performance Features
Based on ArtNet protocol network data communication, accept network DMX data;
IP address is bound to Subnet, no need to reset, plug and play.
ArtNet-DMX-1 could be configured for either ArtNet-DMX512 type or DMX512- ArtNet Type.
When configured for DMX -ArtNet type. Data packets will be sent over the network by broadcast Mode.
Manage ArtNet on broadcast mode or unicast mode.
One set DMX512 data-out for ArtNet-DMX-1, two for ArtNet-DMX-2.
Set different network segments to avoid multiple sets ArtNet data interference.
Compatible with the light software based on ArtNet Protocol, control stage lighting and LED lighting simultaneously.
Product parameter
ArtNet-DMX-2 1024 channels
Power input AC100-240V (with a power adaptor)
Input signal ArtNet
Output signal DMX512
DMX channels 1024 channels
working temperature -20-65
Dimension L120×W73×H45mm
Package Size L135×W80×H50mm
Weight (G.W) 290g
Package Include:

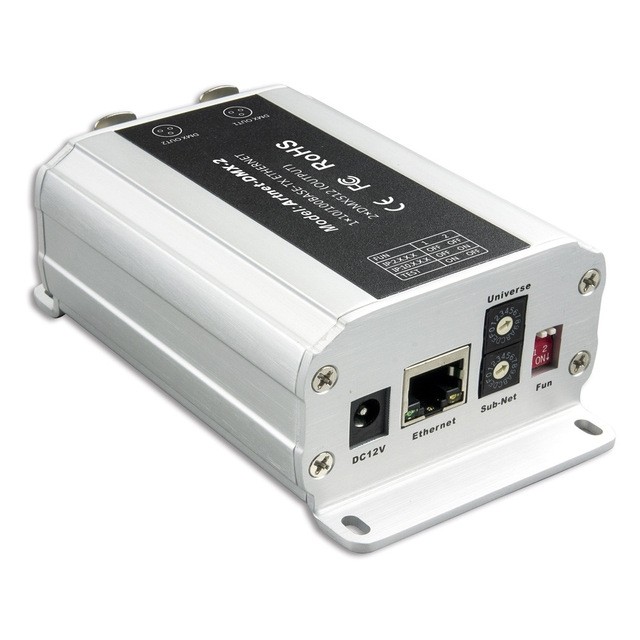

1 Piece of LTECH Artnet-DMX-2 ArtNet-DMX Converter AC100-240V Input Output Signal DMX512
CE and RoHS approved
Additional Information
Weight | 0.5900 |
---|
