Ltech LT-8030 DMX-PWM LED Decoder DMX512 RDM Signal 5V~24Vdc Input

Email to a Friend

Be the first to review this product

Availability: In stock

€23.26

Buy 30 for €21.31 each and save 9%
Buy 100 for €19.27 each and save 18%

Qty:

-OR- -OR-

Quick Overview

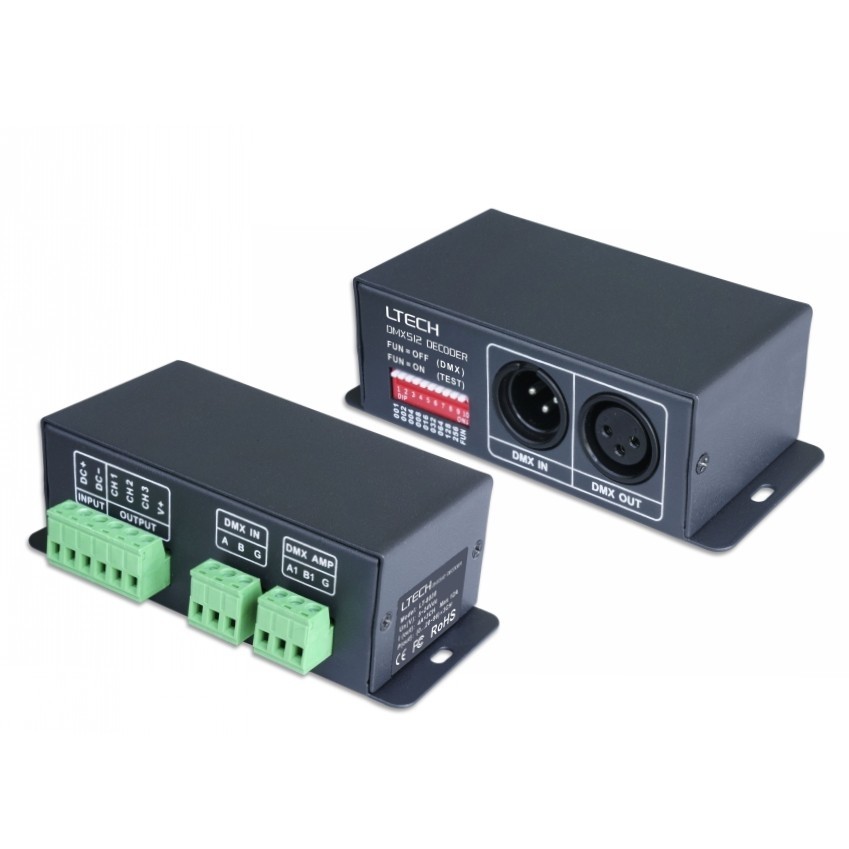

Ltech LT-8030 DMX-PWM LED Decoder DMX512 RDM Signal 5V~24Vdc Input

Double click on above image to view full picture

More Views

Details

LT-8030 3CH DC 5V 24V 12A CV DMX-PWM Ltech LED Decoder Controller is a high quality LED lighting control product. LTECH is a high-end manufacturer of LED Controllers and LED Dimmable Driver. Agoeu has a very good cooperation with LTECH, and supply LTECH products to USA, Europe,UK and other countries for many years.

LT-8030 3CH CV DMX-PWM Decoder

Input signal: DMX512

Input power: DC5V～DC24V

Max load current: 4A ×3CH Max 12A

Max output power: 60W/144W/288W(5V/12V/24V)

DMX512 socket: XLR-3, Green terminal (with signal amplification function)

Dimming range: 0~100%

Working temperature: -30℃～65℃

Dimension: L125×W52×H40mm

Package Size: L135×W70×H50mm

Weight (G.W): 300g

Package Include:
