DMX-PWM DMX Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
outstanding performance.
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lightning stroke and ESD static electricity.

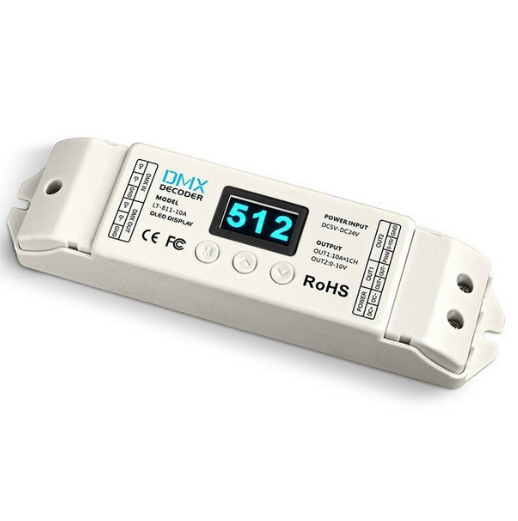

LT-811-10A CV DMX-PWM Decoder (8/16 bits optional,
Special for single color dimming, OLED Display)
Input signal DMX512
Input voltage DC5V-DC24V
Output 10A ×1CH + 0-10V ×1CH + 10V PWM ×1CH
Max output power 50W/120W/240W/(5V/12V/24V)
Dimming range 0~100%
Working temperature -30-55
Dimension L175×W44×H30(mm)
Package Size L178×W48×H33mm
Weight (G.W)
120g
Package Included:
1 Piece of LTECH LT-811-10A DMX CV Decoder 8/16 Bits Optional Special for Single Color
CE and RoHS approved
