Details
LT-830-8A 3CH CV DMX Decoder LT-830-6A
Input signal DMX512
Input power DC5V~DC24V
Max load current 8A ×3CH Max 24A
Max output power 120W/288W/576W(5V/12V/24V)
DMX512 socket XLR-3, RJ45, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30~65
Dimension L163×W78×H40mm
Package Size L180×W82×H50mm
Weight (G.W) 430g
DMX-PWM DMX Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Have excellent performance:
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
Package Included:

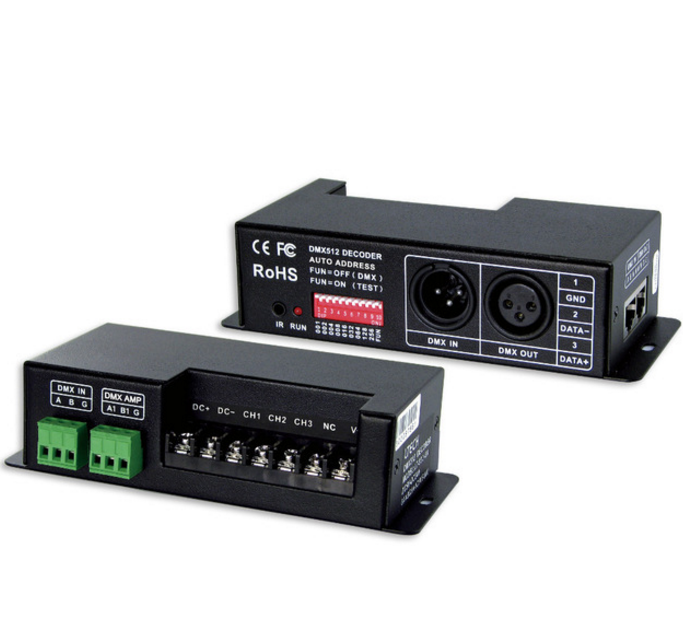

1 Piece of LTECH LT-830-8A DMX-PWM CV DMX512 Decoder DC5-24V Input
CE and RoHS approved
Additional Information
Weight | 0.4500 |
---|
