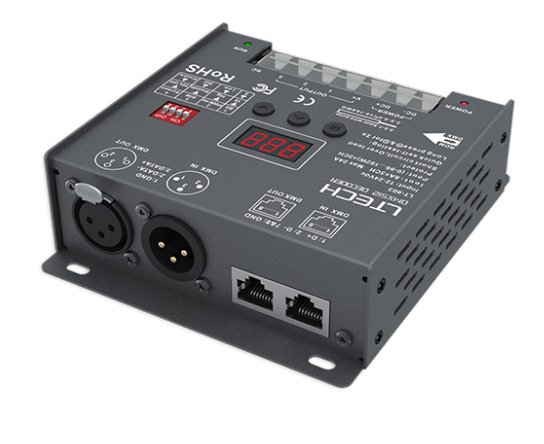

Ltech 3CH CV DMX Decoder LT-903 CV DMX512 Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Product Parameter
LT-903
Input signal DMX512/RDM
Input voltage DC12V～DC24V
Max load current 8A x 3CH Max. 24A
Max output power (0~96W...192W) x3CH Max. 576W
DMX512 socket 3-pin XLR, RJ45
Gray scale level 8bit (256 levels) / 16bit (65536 levels)
Working temperature -30℃～65℃
Dimension L122×W110×H37(mm)
Package Size L127×W123×H41mm
Weight (G.W) 550g
Package Content:
1 Piece of LT-903
1 Piece of Manual
CE and RoHS approved
