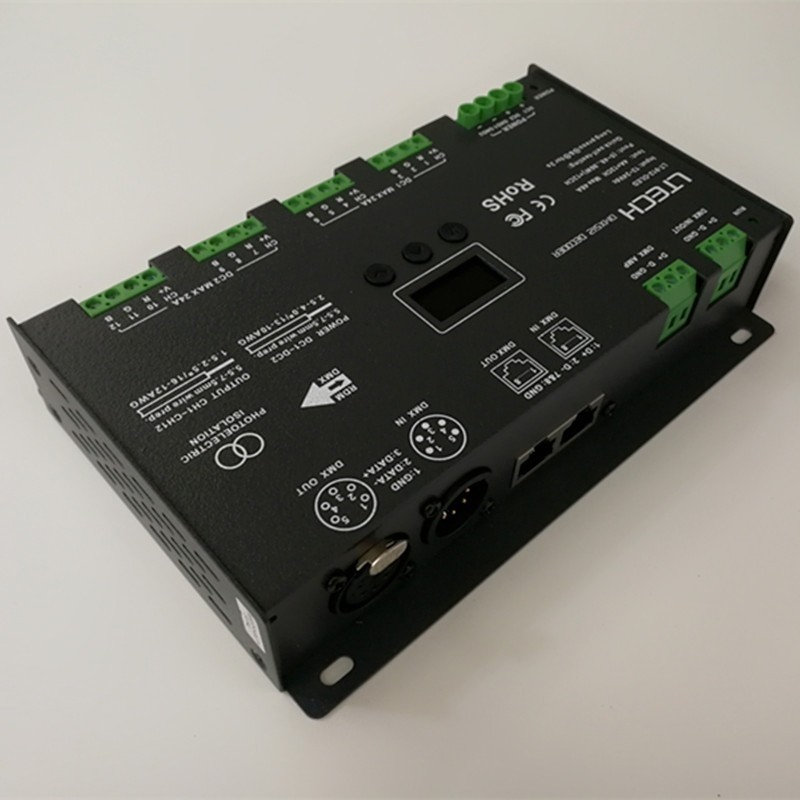

LTECH LT-912-OLED Led DMX Decoder Controller DC12-24V input 4A*12CH 12 Channel output RGB/RGBW Led Controller XLR-3/RJ45 connection Port
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Product Introduction:
Designed for Hi-power multiple channels application, 12 channels output, and Max. 4A current per channel, up to 1152W output power.
Easy operation with OLED screen and the touch buttons.
3 kinds of mode optional: single color, color temperature, RGB.
Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR,RJ45 and green terminal (with signal amplifier function).
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
With photoelectric isolation function.
With shortcut protection and over load protection, as well as warning function when fault.
With fast self-testing function.
16bit / 8bit resolution optional.
Multiple dimming curve (0.1~9.9) optional.
Package Content:
1 Piece of LT-912-OLED DMX Decoder Controller
1 Piece of Manual
CE and RoHS approved
Additional Information
| Weight | 0.7300 |
|---|
