Details

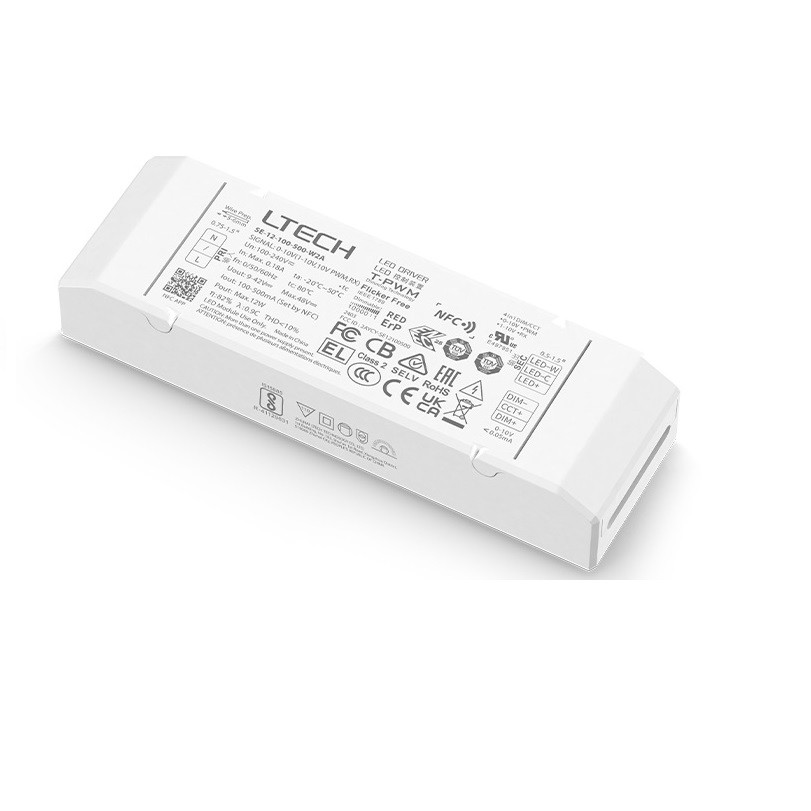

Ltech SE-12-100-500-W2A 12W NFC CC 0/1-10V Tunable White Led Driver Controller Control Dimmer Decoder 9-42Vdc 100-500mA
SE-12-100-500-W2A
Rubycon capacitor
Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac , PF>0.90/230Vac, at full load
Efficiency: 84%
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 100-500mA
Output Power: 0.9W~12.15W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
Warranty: 5 years（Rubycon capacitor）
Package Include:
1 Piece of Ltech SE-12-100-500-W2A 12W NFC CC 0/1-10V Tunable White LED Driver 9-42Vdc 100-500mA
CE and RoHS approved
Additional Information
| Weight | 0.1100 |
|---|
