Details

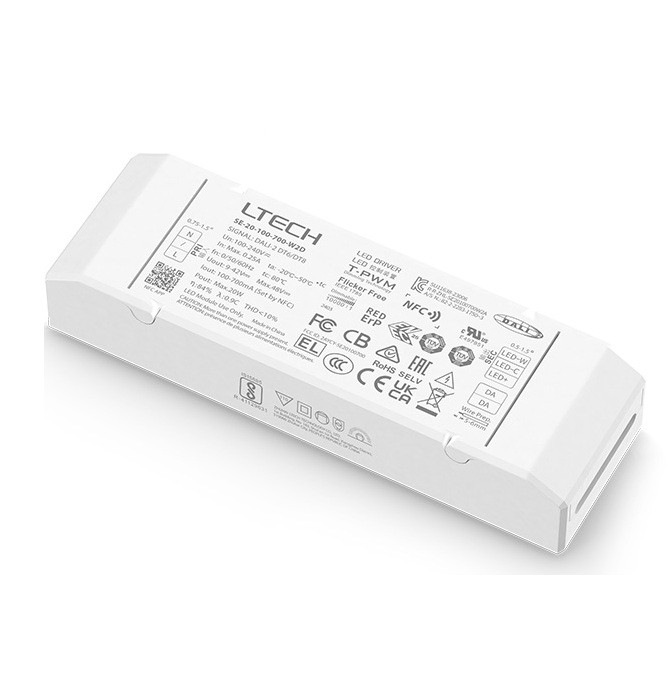

Ltech SE-20-100-700-W2D 20W 100-700mA NFC CC DALI-2 DT6 DT8 Tunable White Led Driver Controller Control Dimmer Decoder
SE-20-100-700-W2D
Rubycon capacitor
Dimming Interface: DALI-2 DT6/DT8
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac , PF>0.90/230Vac, at full load
Efficiency: 86%
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 100-700mA
Output Power: 0.9W~20.4W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS
Warranty: 5 years（Rubycon capacitor）
Package Include:
1 Piece of Ltech SE-20-100-700-W2D 20W 100-700mA NFC CC DALI-2 DT6/DT8 Tunable White LED Driver
CE and RoHS approved
Additional Information
| Weight | 0.1350 |
|---|
