Details
5”×3” miniature size
Universal AC input/Full range
Built-in active PFC function
Medical safety approved(2 × MOPP between primary to secondary)
Suitable for BF application with appropriate system consideration
Low leakage current<200μA
No load power consumption<0.5W by PS-ON control
High efficiency up to 93%
Protections: Shout circuit / Overload / Over voltage / Over temperature
Cooling by free air convection for 200W and 300W with 20.5CFM forced air
Built-in 12V/0.5A fan supply
Standby 5V @ 1A with fan, 0.6A without fan
LED indicator for power on
3 years warranty
Package Includes:

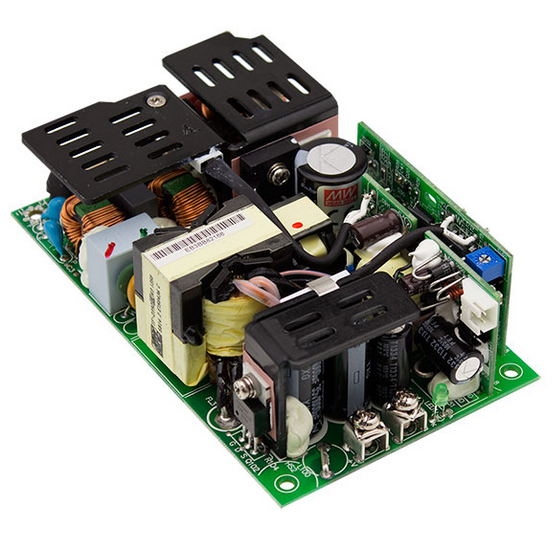

1 Piece of RPS-300 300W Mean Well Single Output Green Medical Type Power Supply
CE and RoHS approved
Additional Information
| Weight | 0.4700 |
|---|
