Details
Current sharing up to 3840W(7+1)
High efficiency 94% and low power dissipation
150% peak load capability
Built-in active PFC function, PF＞0.94
Protections: Short circuit/Overload/Over voltage/Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty
Package Includes:

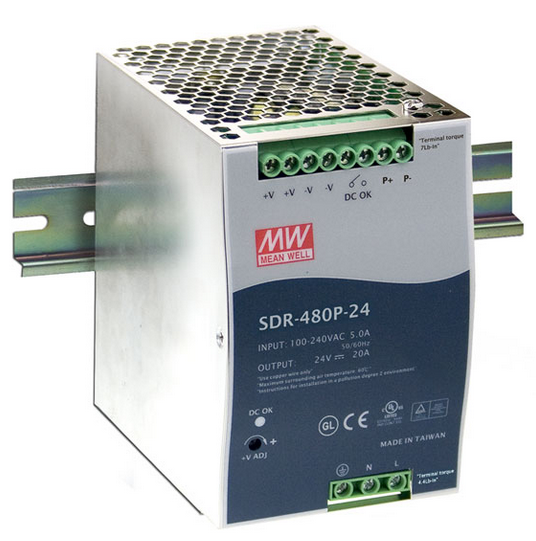

1 Piece of SDR-480P 480W Mean Well Single Output Industrial DIN RAIL With PFC And Parallel Function Power Supply
CE and RoHS approved
Additional Information
| Weight | 1.7000 |
|---|
