Details
Three-Phase 340~550VAC wide range input (Dual phase operation possible)
Width only 110mm
Built-in active PFC function compliance to EN61000-3-2
High efficiency 94.5% and low power dissipation
Protections: Short circuit/Overload/Over voltage/Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Current sharing up to 3840W (3+1)
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty
Package Includes:

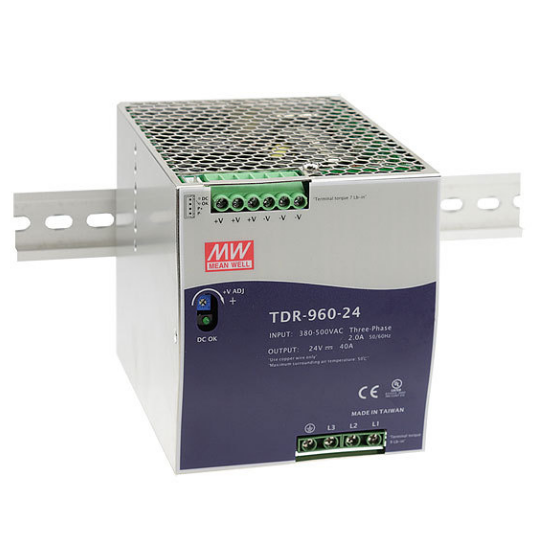

1 Piece of TDR-960 960W Mean Well Three Phase Industrial DIN RAIL With PFC Function Power Suppl
CE and RoHS approvedAdditional Information
| Weight | 2.7200 |
|---|
