Details
Introduction:

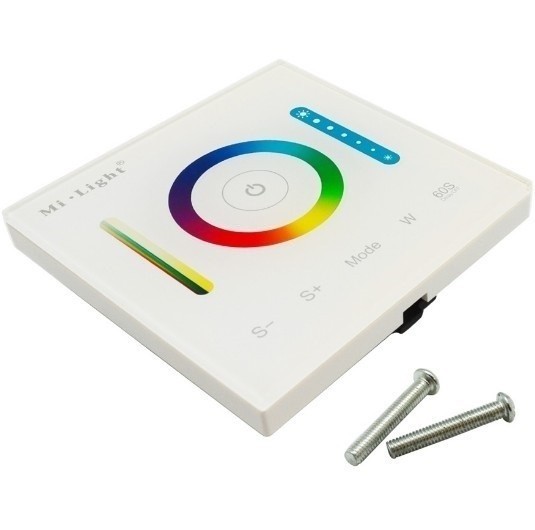

Smart Panel Controller is a newly high-end controller. The appearance is made of a pretty and fashionable gless panels. And we adopt a high precision capactive touch screen IC. Touch screen is vey stable. Also it has memory function( Turn off the light, then turn on again, the lamps will keep the same light as before).
Brightness and CCT adjustable, Made of fashionable glass panel. Adopt a high precision capactive touch screen IC. Touch screen is very stable, widely used on the controlling of led strip.(Pls noted this controller would only control LED Strip, it can not control LED bulbs or LED Lamps.)
Easily install and operate.
Technical Parameters:
1. Working Temperature: -20-60degress
2. Working Voltage: DC12-24V
3. Output Max: 5A/Channel
4. Total Output Max: 15A
5. Output Connection: Common anode
6. Panel Size: L86mm W86mm
7. Weight: 177g
Package Included:
1 Piece of Touch Panel Led Controller
2 pieces of Mounting Kits Screw
Pls noted this controller would only control LED Strip, it can not control LED bulbs or LED Lamps
CE and RoHS approved
Additional Information
| Weight | 0.2100 |
|---|
