Details
Specification:
Voltage:DC 5V -24V
Output Current: 12A
Working Temperature: -20°C-60°C
Size: about L34mm x W13mm x H3mm
Remote controller dimension: about L85mm x W40mm x H6mm
Remote controller battery 3V CR2025 (Excluding)
Details:
ON/STANDBY: to turn on or switch to standby mode
LIGHT: switch to static lighting mode from dynamic mode
20% / 50% / 100% : switch to 100%, 50%, 25% brightness lighting mode
MODE+ / MODE- : switch to dynamic mode from static lighting mode, or switch between dynamic modes.
SPEED+ /SPEED- : adjust dynamic mode lighting speed.
BRIGHT+ / BRIGHT- : adjust lighting mode brightness.
Applications:
5050 Single Color LED Tape Strips and 3528 LED Single Color Light Tape Strips.

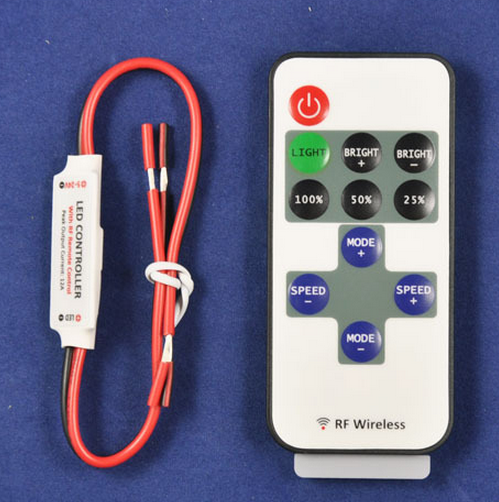

Mini Dimmer RF Wireless Remote Controller For Single Color LED Strips is a easy and good item to control the single color led lights.
Here are the feedbacks we got from many users:
"This tiny little dimmer control is surprisingly good. The module itself is about 2" long and just wires inline. The ends for the power source and the load are clearly marked. I've used a much larger and bulkier LED dimmer with remote before and this one is a big improvement because it's so small and uses RF rather than IR, "
"The product worked as advertised! Most of the time I am weary of buying little items such as this, but this has really changed my views. The remote works great even from another room in my apartment. Overall completely satisfied. "
Package Included:
1 Piece of RF Remote
1 Piece of LED Mini Dimmer
1 Piece of User Manual
CE and RoHS approved
Additional Information
| Weight | 0.0430 |
|---|
