Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (Lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in 1²C interface, PMBus protocol
Output voltage and current programmable
Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air cooling by built-in DC fan
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 8000W for one 19"rack shelf
Protections: Battery under voltage/Battery no connection protection/short circuit/over temperature
Optional conformal coating
Built-in OR-ing FET
Active current sharing up to 8000W for one 19" rack shelf
Protections: Battery under voltage / Battery no connection protection / Short circuit / Over temperature
Optional conformal coating
5 years warranty
Package Includes:

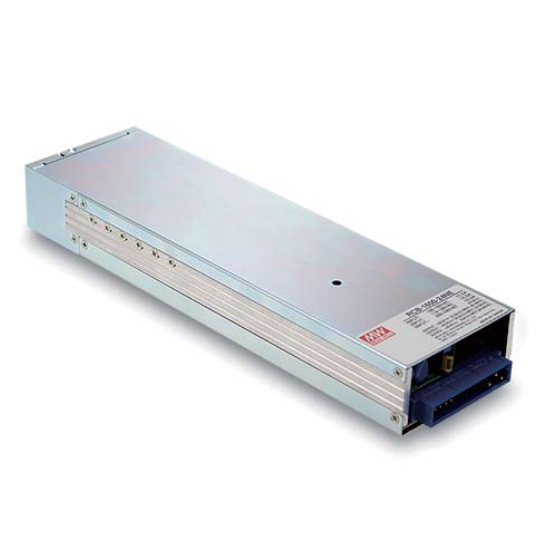

1 Piece of RCB-1600 1600W Mean Well Rack Mountable Front End Battery Charger Power Supply
CE and RoHS approvedAdditional Information
Weight | 1.9700 |
---|
