Details

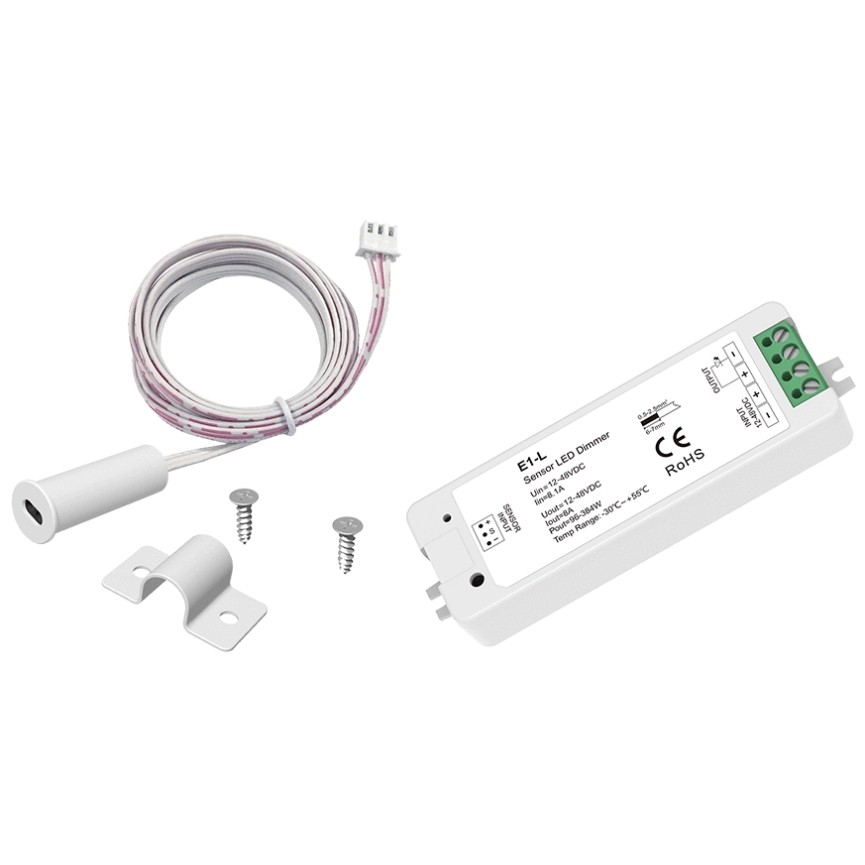

E1-L+EB (C) 12-48V DC 8A Hand Sweep Sensor Led Dmmer Skydance Controller
E1-L
Sensor LED Dimmer
Input connect with a variety of induction sensor head,
output connected directly to the low voltage LED strip.
Max 8A output current, max output power 384W@48V.
PIR motion sensor: when people enter the sensitive eld, the light turn on;
when people exit the sensitive eld, the light turn off after 30 seconds.
Touch sensor: short touch to turn on or turn off light; long touch to dimming up or down.
Door sensor: when the door open, or no obstacle ahead, the light turn on gradually;
when the door close, or obstacle ahead, the light turn off gradually.
Hand sweep sensor: when hand sweep, the light turn on gradually;
when hand sweep again, the light turn off gradually.
Microwave motion detector: turn on the light upon detection of motion,
and turn off after a pre-selected hold time when there is no movement, without dimming,
with dimming and two-step dimming function respectively.
EB(C): Hand sweep sensing head
Make pendulum action at the front end of the sensing head:
when hand sweep, the light turn on gradually;
when hand sweep again, the light turn off gradually.
Hold your hand in front of the sensing head for more than 2 seconds:
The brightness increases or decreases continuously,
the each time the hand is removed and then held again,
the brightness changes in the opposite direction.
Features
Powered by low voltage 5VDC, output 5V level or PWM signal.
Can be used with constant voltage LED dimming power supply.
Apply to cabinet, closet, wine cabinet and other lighting.
Output PWM frequency: 2000Hz.
Package Included:
1 Piece of E1-L+EB (C) 12-48V DC 8A Hand Sweep Sensor Led Dmmer Skydance Controller
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.1000 |
|---|
