Details

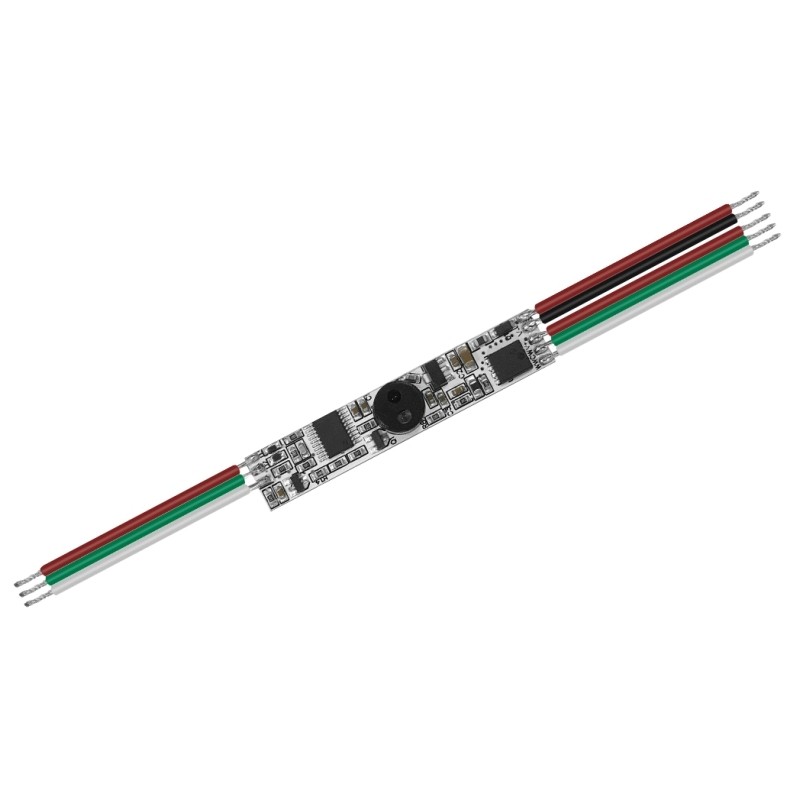

E2-B Skydance Hand Swipe Induction CCT Dimmer Led Controller
E2-B
Hand Swipe Induction CCT Dimmer
Hand swipe induction CCT dimmer, connected directly to the color temperature low-voltage LED strip.
When hold hand short for on/off and long for adjust brightness / color temperature continuously.
When hand swipe fastly, switch between brightness and color temperature adjustment.
Connect with external two push switches, one is used for on/off and adjusting brightness,
the other is used for adjusting color temperature.
Max 3A output current, max output power 72W@24V.
Generally installed in the aluminum lamp strip housing.
3M paste in the bottom of the PCBA make easy installation and security.
Low cost and high stability.
Widely used in table lamps, bedroom lamps, wardrobe lights, etc.
Package Included:
1 Piece of E2-B Skydance Hand Swipe Induction CCT Dimmer Led Controller
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.0500 |
|---|
