Details
Each DMX common controller occupied 12 DMX addresses, adopt coding switch set address.
It is a Binary numerial code switch which is setting DMX original address code from 1 to 9 , 1 is the lowest, and 9 is the highest, 511 address codes could be setted in all
DMX original address code equal aggregate value from 1 to 9, dial the coding switch upwards (ON is setted 1), the value of bit can be gotten , on the contrary , the value of bit is 0
DMX signal can be received when coding switch FUN(10)=OFF
There are several switches is ON at the same time , the great value is standard.
Product description

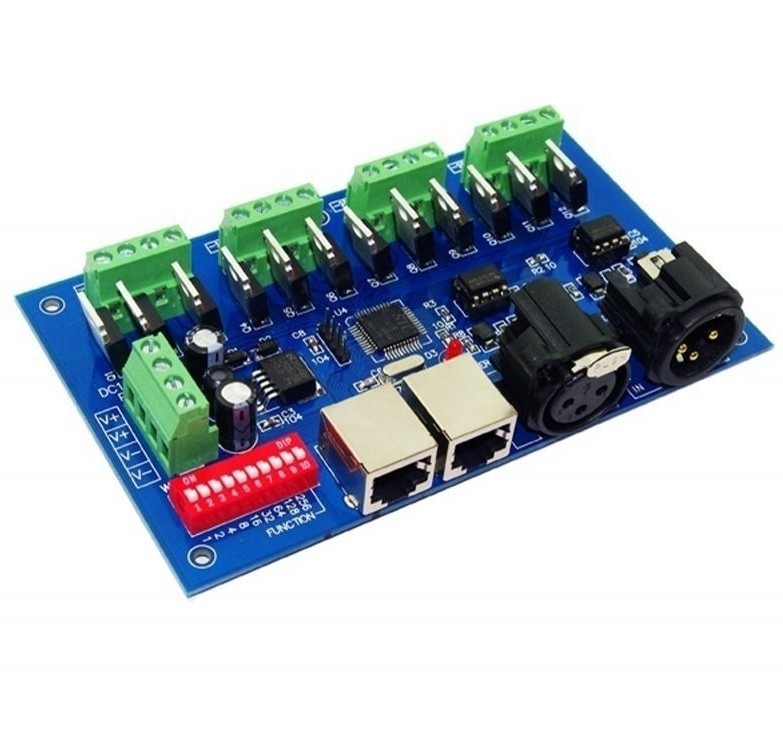

LED DMX512 Controller,for LED Strip Module
Specification:
Input/Output Voltage: DC12V-24V
Total Output of current:24A
Output:2A each channel max 3A
Channel:12 channel 4 group
Controller:DMX512 XRL 3P RJ45
Dimension:140x84x25mm
Weight:0.2Kg
Product Model:
Package Included:
1 Piece of WS-DMX-12CH
CE and RoHS approved
Additional Information
Weight | 0.2000 |
---|
